Inductive Pneumatic Parallel Jaw Gripper Long Stroke Four Piston Eoat Gripper

Name: Inductive Pneumatic Parallel Jaw Gripper Long Stroke Four Piston Eoat Gripper
Brand: Hyclamavin
Price: 500 USD

Wholesale Inductive Pneumatic Parallel Jaw Gripper Long Stroke Four Piston Eoat Gripper from china suppliers

Brand Name : Hyclamavin

Model Number : TPL

Certification : ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : USD500-1000.00/PC

Payment Terms : L/C, T/T

Supply Ability : 5000 pcs per month

Delivery Time : 4-6 weeks

Packaging Details : Carton Case

Actuation : Pneumatic

Sensor Type : Inductive

Operating Temperature : 0-60°C

Jaw Type : Parallel

Jaw Height : 30 mm

Weight : 0.5 kg

Max. Operating Pressure : 10 bar

Mounting Type : Through-hole

Jaw Opening Range : 0-50 mm

Material : Steel

Jaw Width : 25 mm

Stroke Length : Long

Gripping Force : High

Manufacturer : TPL

Contact Now

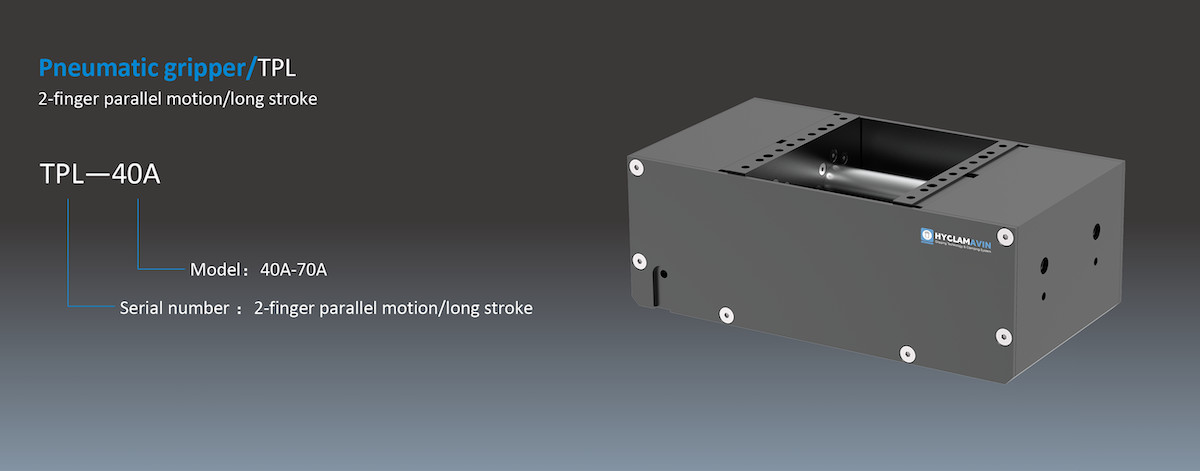

2-Jaw Pneumatic Parallel Long Stroke Gripper TPL

High-Performance TPL Grippers with Long Stroke & Four-Piston Structure for Enhanced Gripping Force

Product Information

Inductive Pneumatic Parallel Jaw Gripper Long Stroke Four Piston Eoat Gripper

Superior Performance

1. The TPL grippers feature an extended stroke and a four-piston configuration.

Inductive Pneumatic Parallel Jaw Gripper Long Stroke Four Piston Eoat Gripper

● Extended stroke designed to fulfill the needs of specific operating environments

● Innovative four-piston structure, compact size, and enhanced gripping force

Model and Technical Parameters

Model	Stroke per jaw [mm]	Closing/ opening force[N]	Weight [kg]	Recommended workpiece weight[kg]	Closing/ opening time[s]	Repeat accuracy [mm]	Protection class IP
TPL-40A	40	1790/1050	4.5	8.95	0.40/0.40	0.02	40
TPL-70A	70	4450/2940	9.1	22.25	0.70/0.70	0.02	40
