3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper

Brand Name : Hyclamavin

Model Number : THB

Certification : ISO9001

Place of Origin : China

MOQ : 1 pce

Price : USD, 700-4700, PC

Payment Terms : L/C, T/T

Supply Ability : 1000 pcs per month

Delivery Time : 4-6 weeks

Packaging Details : Carton Case

Gripping Range : Adjustable

Mounting Type : Flanged joint

Actuation : Pneumatic

Material : Aluminium + Steel

Gripping Force : High

Number Of Jaws : 3

Operating Pressure : 2.5-8 bar

Manufacturer : Hyclamavin

Operating Temperature : 5-90°C

Weight : 0.13-52 kg

Stroke per Jaw : 2.5 mm-20 mm

Jaw Type : Parallel

Protection Class : IP40

Repeat Accuracy : 0.01mm

Recommended workpiece weight : 1.85-110 kg

Contact Now

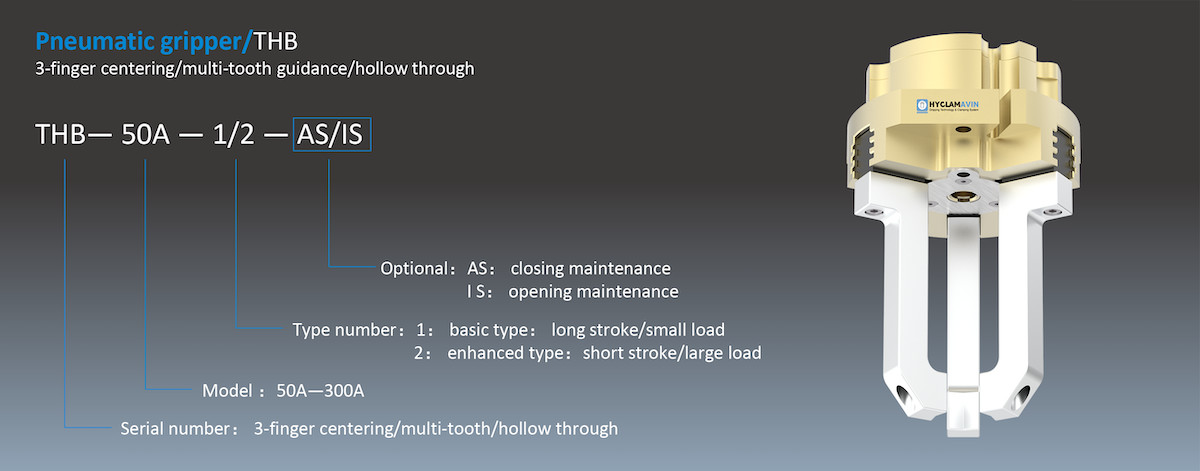

3-Jaw Pneumatic Parallel Hollow Through THB
Product Introduction

3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper

Excellent performance

  • The THB grippers adopt high precision, permanent lubrication, multi-tooth and straight groove guidance ;
  • The THB grippers have hollow through structure.
  1. Compact structure can be used for short stroke and heavy load
  2. The load is distributed to more surfaces to reduce the contact stress
  3. Grease can be distributed more quickly and evenly
  4. It can ensure enough motion rigidity and accuracy for a long time
  5. The oil storage structure in the multi tooth guide extends the service life
  6. The central hole can be used for tubular or rod- shaped parts to pass through
  7. The center hole is equipped with internal thread to facilitate the installation of accessories

  • The THB grippers have a variety of sensor interfaces and pneumatic interfaces.

3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper

Gripping force maintenance-AS/IS

  • The THB grippers can be equipped with gripping force maintenance, expanded to THB-AS/IS

(AS: closing maintenance, IS: opening maintenance)

  • The spring is used as the holding accumulator, gripping force maintenance ensure a minimum clamping force in the event of a pressure drop.

3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper

Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protection class IP
THB-50A-1 2.5 370/400 0.26 1.85 0.03/0.03 0.01 40
THB-50A-1-AS 2.5 490/- 120 0.36 1.85 0.02/0.04 0.01 40
THB-50A-1-IS 2.5 -/540 140 0.36 1.85 0.04/0.02 0.01 40/64
THB-64A-1 4 550/650 0.5 2.75 0.03/0.03 0.01 40
THB-64A-1-AS 4 680/- 130 0.62 2.75 0.02/0.04 0.01 40
THB-64A-1-IS 4 -/820 170 0.62 2.75 0.04/0.02 0.01 40
THB-64A-2 2 910/930 0.5 4.55 0.03/0.03 0.01 40
THB-64A-2-AS 2 1190/- 280 0.62 4.55 0.02/0.04 0.01 40
THB-64A-2-IS 2 -/1210 280 0.62 4.55 0.04/0.02 0.01 40/64
THB-80A-1 6 900/1000 0.8 4.5 0.05/0.05 0.01 40
THB-80A-1-AS 6 1120/- 220 1.1 4.5 0.04/0.06 0.01 40
THB-80A-1-IS 6 -/1200 200 1.1 4.5 0.06/0.04 0.01 40
THB-80A-2 3 1370/1520 0.8 6.8 0.05/0.05 0.01 40
THB-80A-2-AS 3 1730/- 360 1.1 6.8 0.04/0.06 0.01 40
THB-80A-2-IS 3 -/1920 400 1.1 6.8 0.06/0.04 0.01 40/64
THB-100A-1 8 1700/1920 1.45 8.5 0.10/0.10 0.01 40
THB-100A-1-AS 8 2200/- 500 2.2 8.5 0.10/0.20 0.01 40
THB-100A-1-IS 8 -/2600 680 2.2 8.5 0.20/0.10 0.01 40
THB-100A-2 4 3400/3630 1.45 17 0.10/0.10 0.01 40
THB-100A-2-AS 4 4300/- 900 2.2 17 0.10/0.20 0.01 40
THB-100A-2-IS 4 -/5130 1500 2.2 17 0.20/0.10 0.01 40
THB-125A-1 10 3100/3500 2.4 15.5 0.20/0.20 0.01 40
THB-125A-1-AS 10 3750/- 650 3.9 15.5 0.17/0.35 0.01 40
THB-125A-1-IS 10 -/4250 750 3.9 15.5 0.35/0.17 0.01 40
THB-125A-2 5 5400/6100 2.4 27 0.20/0.20 0.01 40
THB-160A-1 13 4600/6000 4.7 23 0.50/0.50 0.02 40
THB-160A-1-AS 13 5400/- 900 7.2 23 0.40/0.80 0.02 40
THB-160A-1-IS 13 -/7500 1500 7.2 23 0.80/0.40 0.02 40
THB-300A-1 35 13000/13800 37 65 1.30/1.30 0.05 40
THB-300A-1-AS 35 17400/- 4400 52 65 1.20/2.50 0.05 40
THB-300A-1-IS 35 -/17400 3600 52 65 2.50/1.20 0.05 40
THB-300A-2 20 22000/23500 37 110 1.30/1.30 0.05 40
THB-300A-2-AS 20 29700/- 7700 52 110 1.20/2.50 0.05 40
THB-300A-2-IS 20 -/29800 6300 52 110 2.50/1.20 0.05 40
